255 XD 2025

Name: Product | Products
Brand: BOATS
SKU: 255XD

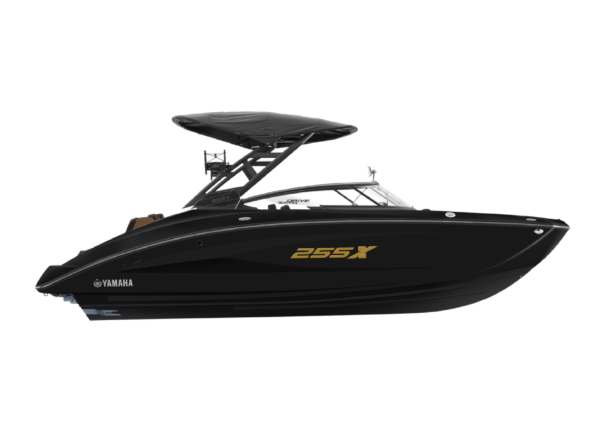

THE ULTIMATE JET-POWERED WAKESURFER

SPECIFICATIONS

Specifications

GENERAL

Length: 24 ft 6 in
Weight: 4 656 lbs
Beam: 8 ft 6 in
Draft: 19 in
Dead Rise: 20°
In-Water Height (Bridge Clearance): 8 ft 1 in
Fuel Tank Capacity: 75 gal
Seating Capacity / Weight Capacity: 12
Storage Capacity: 613 gal
Height on Trailer: 11 ft
Height on Trailer with Tower Folded: 9 ft 11 in
Length on Trailer: 26 ft 3 in
Length on Trailer with Tongue Folded: 24 ft 8 in
Dry Weight on Trailer: 5 930 lbs
Yamaha Marine Engine: Twin Supercharged 4-cylinder 4-stroke Super Vortex High Output Yamaha Marine Engines

COCKPIT AND BOW

Snap-In Custom Cut Marine-Grade Mat: Yes
Ski Locker: Yes
Removable Dinette Table with Pedestal: Mount at Stern
Bow Filler Inserts for Multiple Seating Configurations: Yes
Hinged Seat Cushions: Yes
Tilt Steering: Yes
Upgraded Steering Wheel: Yes
Upgraded Upholstery: Yes
Chil-Cool Vinyl Upholstery: Yes
Adjustable Captain's Chair with Flip-Up Bolster: Yes
Passenger-side Captain's Chair: Yes
Portside Entertainment Area: Yes
Lockable Passenger Side Glove Box: Yes
Walk-through Bow Door: Yes
Integrated Removable Cooler: Yes
Enclosed Head Compartment: With Wardrobe Storage Features
Upholstered Interior & Light:
Galley with Stow-in-Place Table and Storage: Yes
Docking Lights: Yes
Courtesy Deck Lighting: Yes
Courtesy Tower Lighting: Yes
Dedicated Anchor and Rope Locker: Yes
Bow Reboarding Ladder: Yes
Upgraded Aluminum Handles & Accents: Yes
Cockpit Drainage System (CDS): Yes
LED Accent Lighting: Yes

STERN

TECHNICAL

DRiVE X: Yes
Connext Screen: 12.3 in
Display with Maps: Yes
Yamaha E-Series Features: Yes
Drive-By-Wire Technology: Yes
Helm Switch Panels: Blue LED Lit
Wireless Charging Points: 1
Marine Speakers: 7 Premium Hertz Speakers
Tower Speakers: 2 Premium Hertz Speakers
Stern Stereo Remote: Yes
Stern Speakers: Yes
3 Position "No Wake Mode" Control: Yes
Cruise Assist: Yes
Battery Setup: Dual
Quiet Cruise Technology: Yes
Integrated Ballast System: Yes
Toe-in Jet Nozzle Position: Yes
Integrated Electric WakeBooster: Yes
Underwater Light: Yes
Engines and Driveline::
Displacement (per engine): 1812 cc
Fuel Capacity: 75 gal
Recommended Fuel: Premium Unleaded
160 MM High-Pressure Pump: Yes
Pump Clean-out Ports: Yes
Oil Capacity per Engine: 3.7 L

EXTERIOR

TRAILER

Features

Equipped with advanced Electronic Throttle Control, the system includes push button start/stop, RPM engine sync, and single throttle lever pairing.

With the push of a button on the Connext Touchscreen, the integrated WakeBoosters can be deployed on either side of the boat, creating adrenaline-pumping wakes for wakesurfing.

The 255XD features a cutting-edge Connext touchscreen, the largest that Yamaha offers, seamlessly integrated into its minimalistic, floating helm design.

Engineered with a special heat-reflective coating, this innovative vinyl keeps surfaces cool to the touch while being resistant to mildew and fading, ensuring long-lasting comfort and durability.

Supercharged and intercooled, Yamaha's SVHO engines deliver a combined 500 horsepower, channeled through Yamaha's renowned Jet Propulsion system for unmatched performance.

The 255XD comes equipped with a 1,600 lbs triple ballast system, an oversized billet aluminum rear view mirror, and a premium sound system specifically designed to enhance your towing experience
