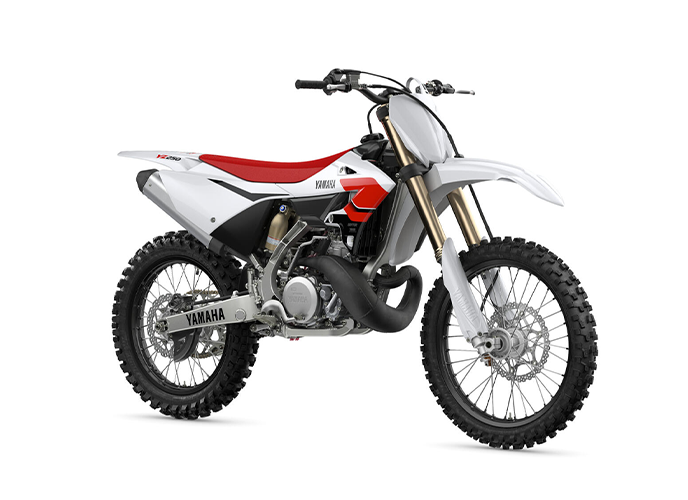

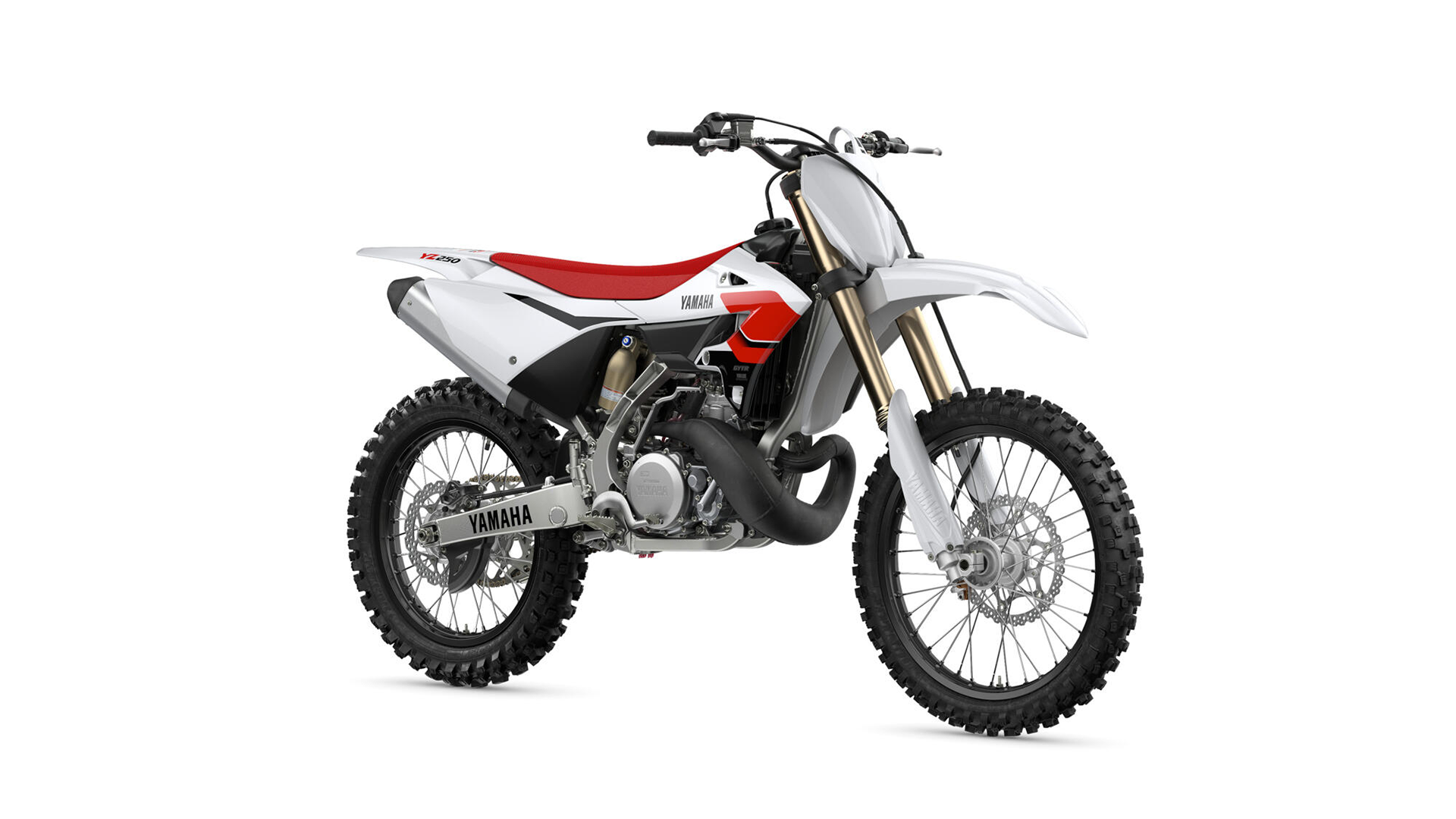

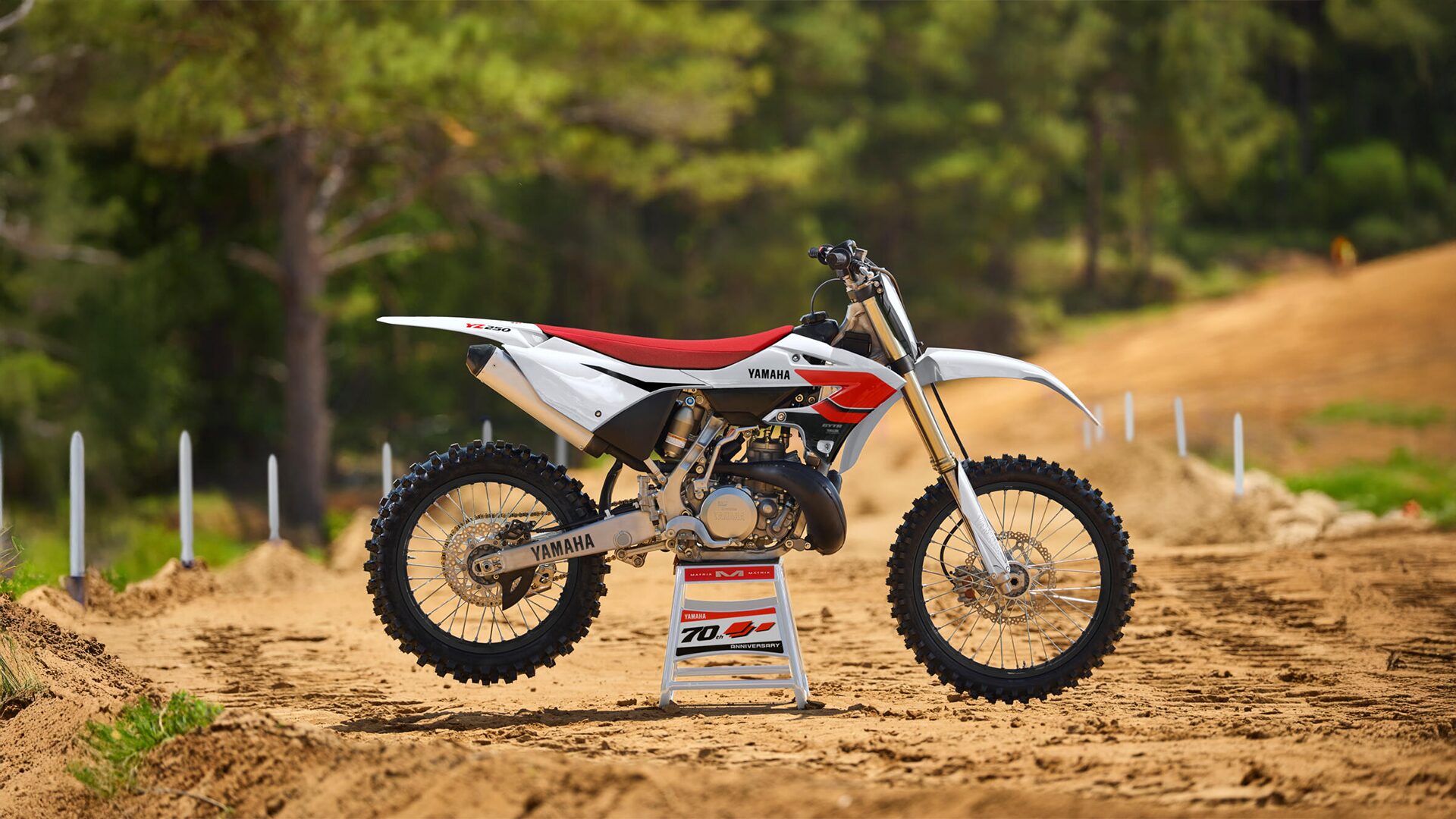

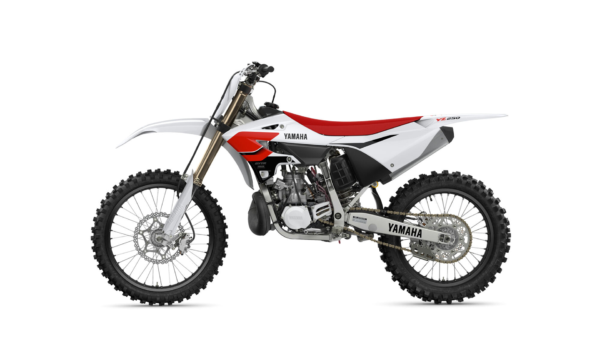

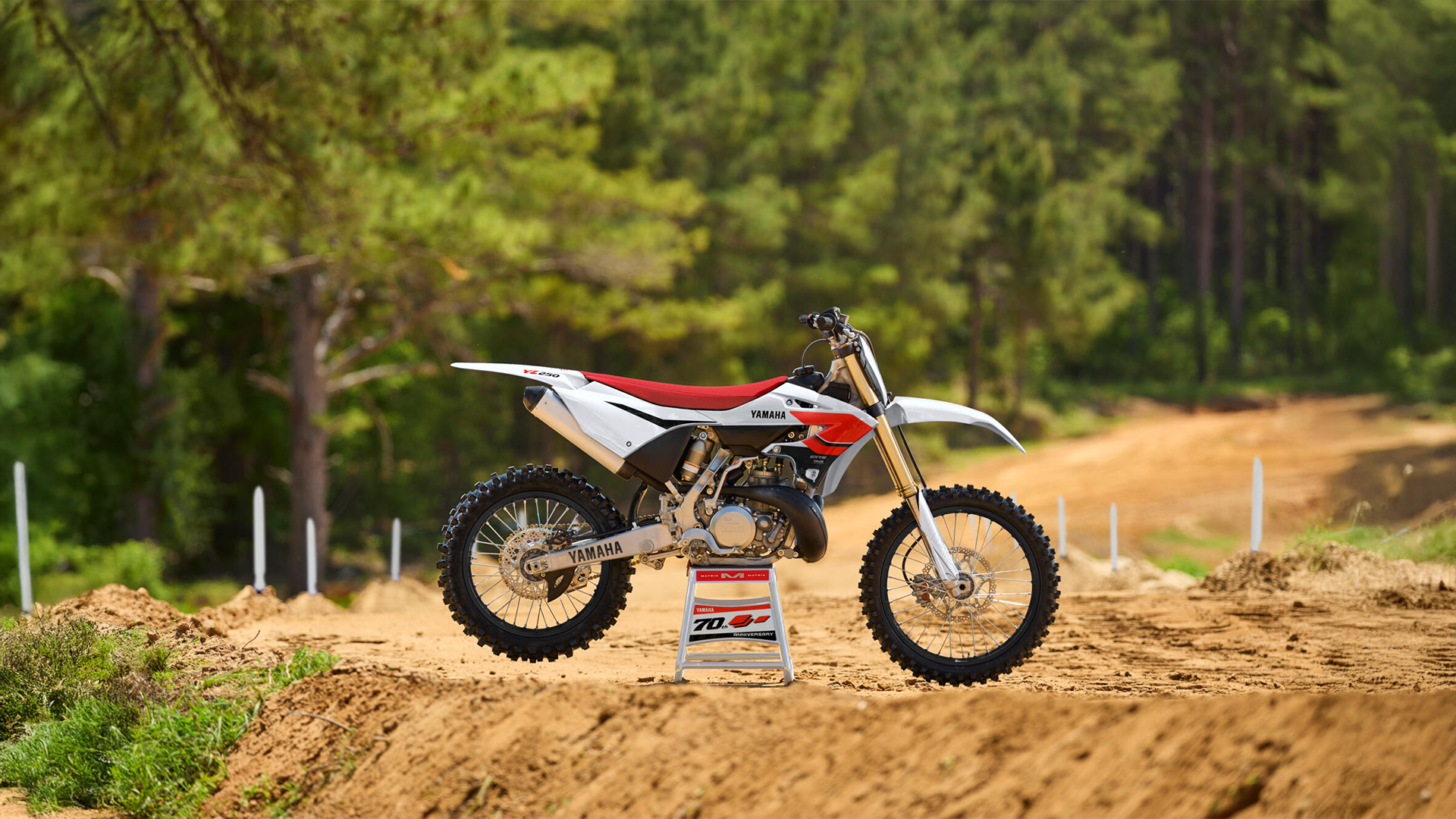

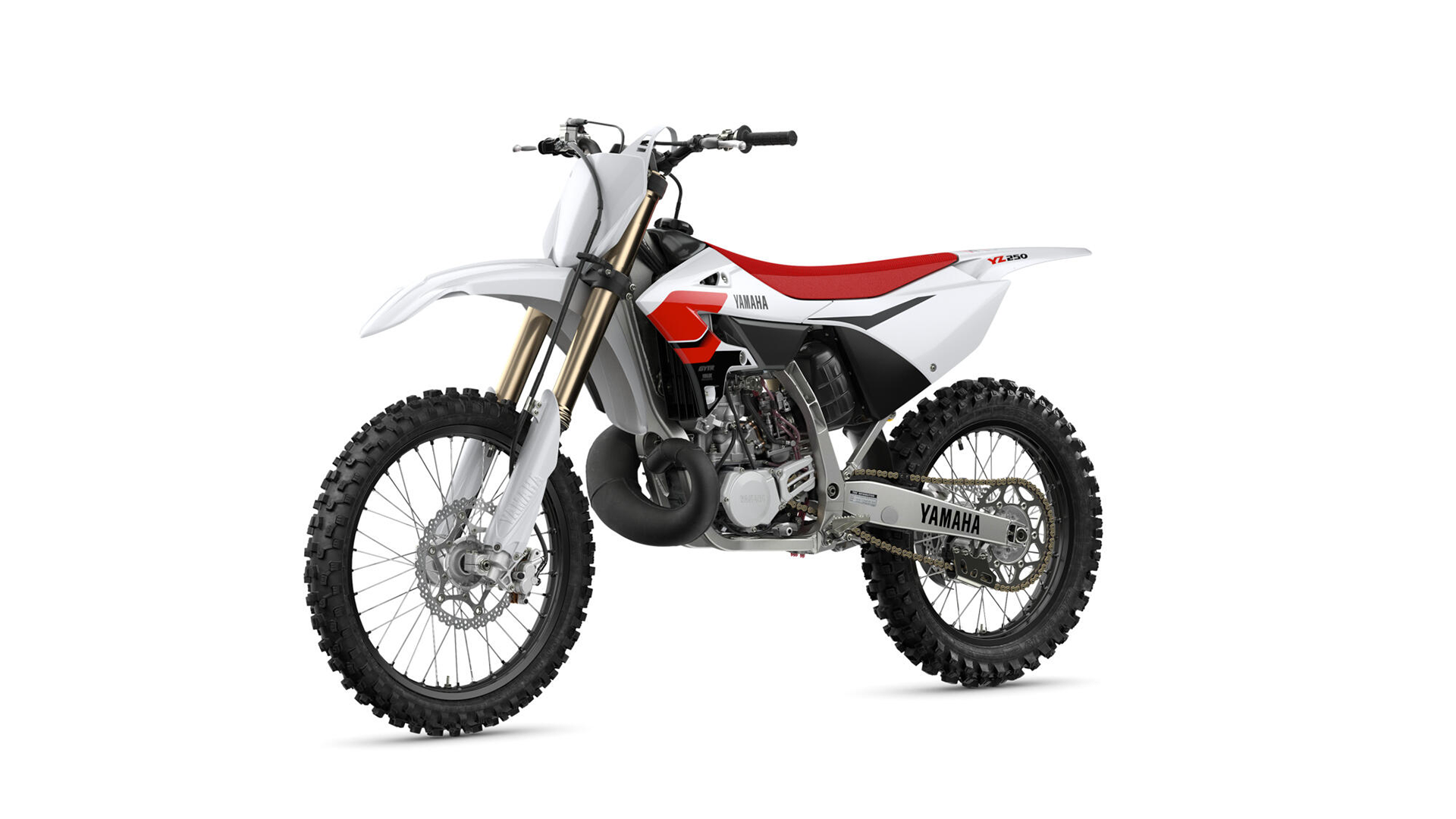

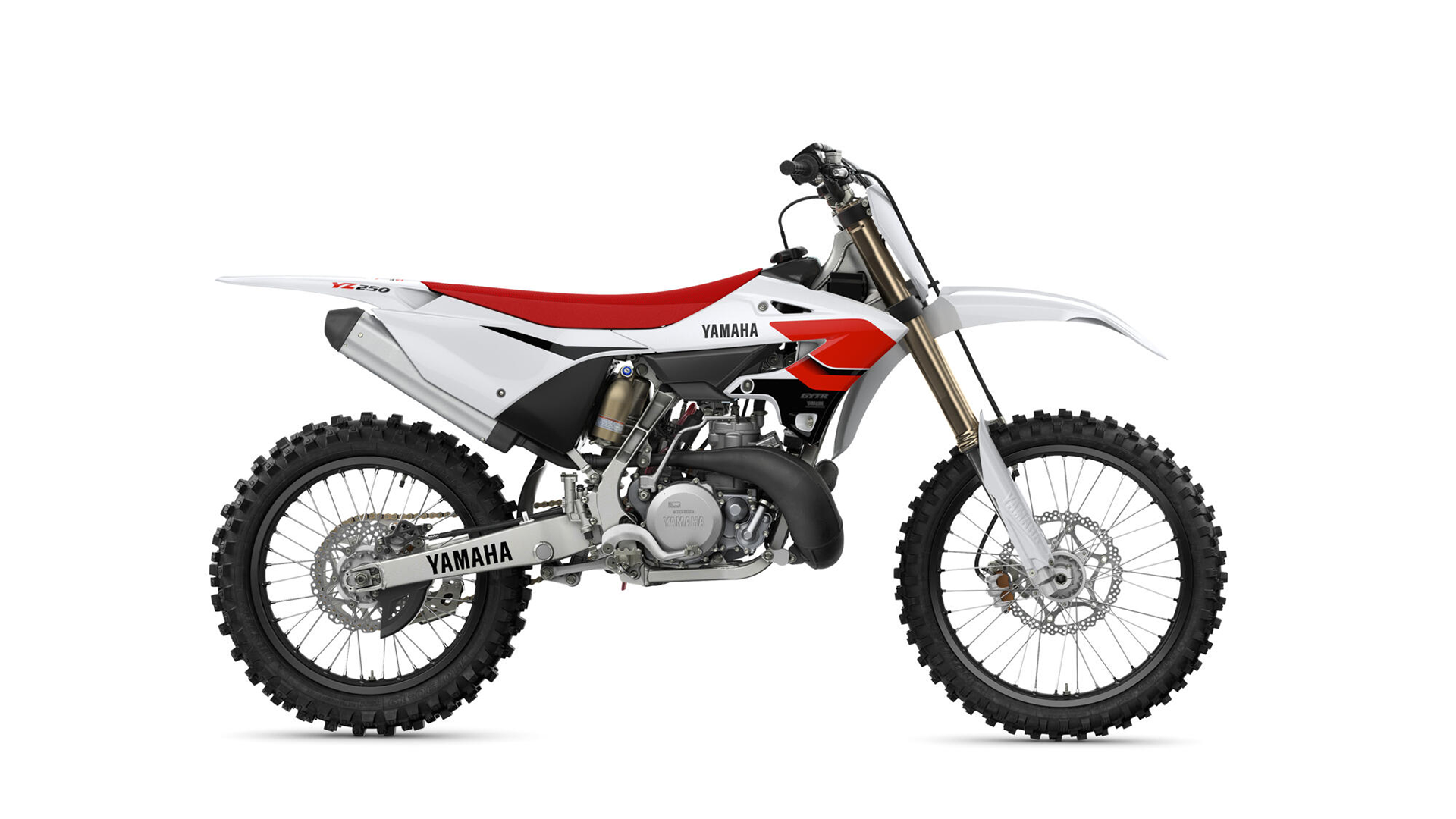

70TH ANNIVERSARY YZ250

Name: Product | Products
Brand: MOTORCYCLES

70th Anniversary Edition

SPECIFICATIONS

Specifications

Engine

Engine type: Liquid-cooled 2-stroke Single cylinder
Displacement: 249 cc
Bore x stroke: 66.4 x 72.0 mm
Compression ratio: 8.9 - 10.6
Lubrication system: Premix
Clutch type: Wet Multiple Disc
Ignition system: CDI
Starter system: Kick
Transmission system: Constant Mesh 5-speed
Final transmission: Chain
Fuel system: Fuel system

Chassis

Frame: Semi double cradle
Front suspension system: Telescopic Fork
Front travel: 300 mm
Rear suspension system: link suspension Swingarm
Rear travel: 315 mm
Front brake: Hydraulic Single Disc Ø 270 mm
Rear brake: Hydraulic Single Disc Ø 240 mm
Front tyre: 80/100-21 51M Tube Type
Rear tyre: 110/90-19 62M Tube Type
Caster angle: 27°40'
Trail: 122 mm

Dimensions

Overall length: 2185 mm
Overall width: 825 mm
Overall height: 1290 mm
Seat height: 975 mm
Wheel base: 1485 mm
Minimum ground clearance: 360 mm
Wet weight (including full oil and fuel tank): 103 kg
Fuel tank capacity: 7 L
Oil tank capacity: n/a

Features

70th Anniversary Edition bodywork
Slimline bodywork
Powerful braking system
Industry-leading KYB suspension
High-efficiency air intake
Race-bred ergonomics

70th Anniversary Edition bodywork

Inspired by Yamaha's racing DNA, spirit of innovation and continuous challenge for new victories, the YZ250 70th Anniversary Edition sports a special white and red livery that make this the ultimate 250cc 2-stroke.

Slimline bodywork

The YZ250 70th Anniversary Edition comes with a slimline bodywork that gives this bike a sharp and athletic look. The narrow fuel tank and radiator shrouds give a compact riding position that enables you to shift body weight rapidly for the highest levels of cornering agility.

Powerful braking system

The high specification front brake set up features a 270mm diameter disc and a rigid twin pot caliper with large diameter 25.4mm pistons that ensure optimum braking performance. A lightweight 240mm rear disc minimises unsprung weight reduces weight while delivering instant stopping power with plenty of feel.

Industry-leading KYB suspension

Yamaha's SSS (Speed Sensitive System) front forks are second to none. And the YZ250's industry leading suspension delivers plush low speed damping for more effective cornering performance giving you a real advantage. Whatever the type of track the YZ250's sophisticated front and rear suspension makes a real difference and gives you the ability to outhandle the opposition.

High-efficiency air intake

The YZ250's side panels, rear fender, seat base and rear frame have all been specially developed to enhance the ow of fresh air entering the airbox to ensure optimum intake efficiency. Together with a high efficiency exhaust system this system gives you holeshot-winning acceleration and explosive power right through the rev range.

Race-bred ergonomics

With its slim tank, narrow radiator shrouds and at seat the YZ250 Monster Energy Yamaha Racing Edition is one of the most agile handling dirt bikes. As soon as you get moving on this legendary 2-stroke you'll discover how easy it is to shift your bodyweight for a high degree of control when braking cornering or accelerating.
