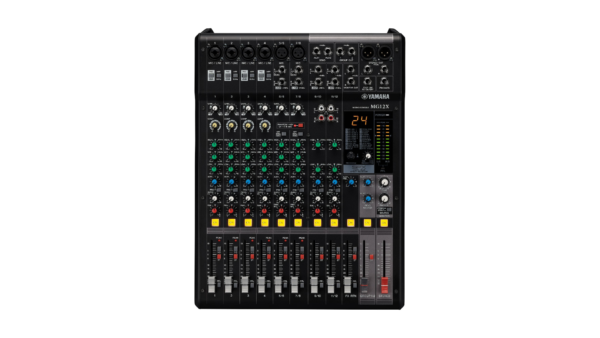

MG12XCV

Name: Product | Products
Brand: analogue mixers
SKU: MG12XCV

For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

SPECIFICATIONS

Specifications

Outline

Mixing capability - On-board Processors: SPX algorithm
PARAMETER control:1:
FOOT SW:1 (FX RTN CH on/off):
Phantom Power: +48 V
Digital I/O: -
Mono[MIC/LINE]: 4
Mono/Stereo[MIC/LINE]: 2
Stereo[LINE]: 2
STEREO OUT: 2
MONITOR OUT: 1
PHONES: 1
AUX SEND: 2
GROUP OUT: 2
Bus: Stereo
GROUP: 2
AUX: 2 (incl. FX)
PAD: 26 dB (Mono)
HPF: 80 Hz
12 dB/oct (Mono/Stereo: MIC only)
COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold
Ratio: 1:1 to 4:1
Output level: 0 dB to 7 dB Attack time
Release time: approx. 300 msec
EQ HIGH: Gain
Frequency: 10 kHz shelving
EQ MID: Gain
Frequency: 2.5 kHz peaking
EQ LOW: Gain
Frequency: 100 Hz shelving
PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter: 2x12 -segment LED meter [PEAK
+10:
+6:
+3:
0:
-3:
-6:
-10:
-15:
-20:
-25:
-30 dB]:

General Specifications

Total harmonic distortion: 0.03 % @ +14dBu (20 Hz to 20kHz)
GAIN knob: Min
0.005 % @ +24dBu (1kHz):
GAIN knob: Min
Frequency response: +0.5 dB/-1.5 dB (20 Hz to 48 kHz)
refer to the nominal output level @ 1 kHz:
GAIN knob: Min
Equivalent input noise: -128 dBu (Mono Input Channel, Rs
Residual output noise: -102 dBu (STEREO OUT, STEREO master fader
Crosstalk: -78 dB
Power requirements: AC 100 – 240 V
50 / 60 Hz:
Power consumption: 22 W
Dimensions - W: 308 mm (12.1inches)
Dimensions - H: 118 mm (4.6inches)
Dimensions - D: 422 mm (16.6inches)
Net weight: 4.2 kg (9.3 lbs)
Accessories: Included Accessory
Technical Specifications:
AC power cord:
Optional Accessory: Rack-mount kit RK-MG12
Foot Switch FC5:
Others: Operating Temperature

Others

Features

Yamaha has always strived to provide sound engineers with the purest possible signal instead of added processing or colour to give it a "signature" sound, and the MGX Series is no exception. Embracing this philosophy of transparent sound, these mixing consoles deliver a level of sonic purity and sound quality that is unmatched in their class.

When was the last time you heard guitar without EQ or a completely unprocessed vocal on one of your favourite songs? Probably never. Yamaha mixers are famous for their flat response and sonic purity, but it often takes more than a perfectly-captured instrumental performance or vocal to achieve a professional-sounding mix. Equipped with some of the same state-of-the-art functionality featured on Yamaha’s high-end consoles, the MG Series gives you the tools you need to produce high quality sound that is uniquely your own.

For musical and non-musical applications alike, effects processing adds polish and professionalism to the mix. The MGX models feature Yamaha’s acclaimed SPX digital multi-effect processor, offering a comprehensive suite of 24 editable digital effects perfect for enhancing your mix, whether adding depth to a speaking engagement or breathing new colour and atmosphere into a live band performance. In particular, the high-quality reverb and delay expand the spatial quality of the sound with remarkable realism and naturalness. You can even connect an optional FC5 foot switch for effect on / off control.

For gigging, recording, and installed applications alike, your console can be subjected to a wide range of environmental conditions and hazards. Excessive humidity, unstable power supplies, and the rigors of road travel in general can take a serious toll on a mixing console, often causing expensive, time-consuming repairs, and reducing its lifespan. The MGX Series has been redesigned with an emphasis on durability, incorporating practical features that offer greater flexibility while ensuring peak performance for many years to come.
