MGX12

Name: MGX12 | Yamaha | Digital Mixers
Brand: digital mixers
SKU: MGX12

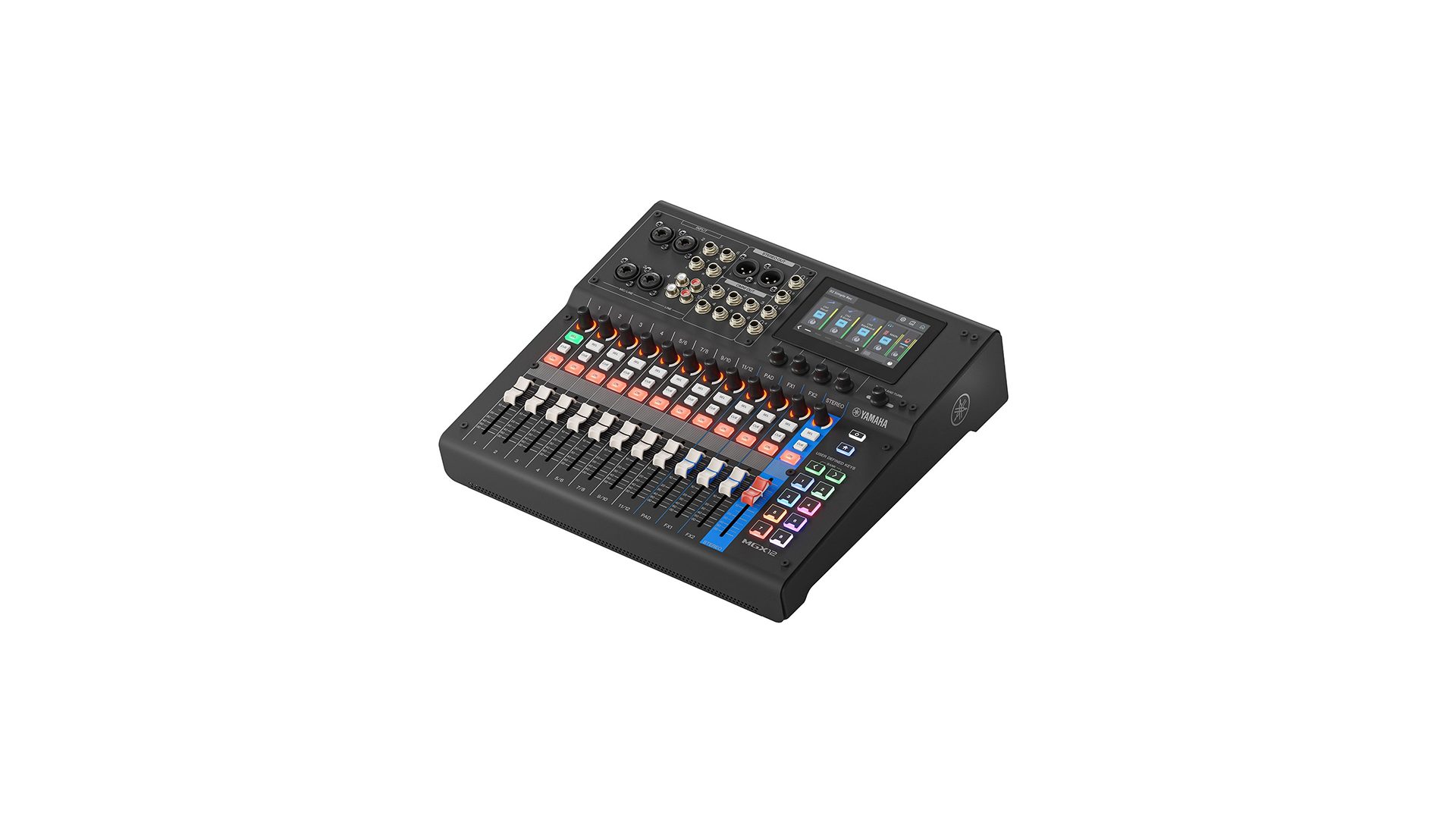

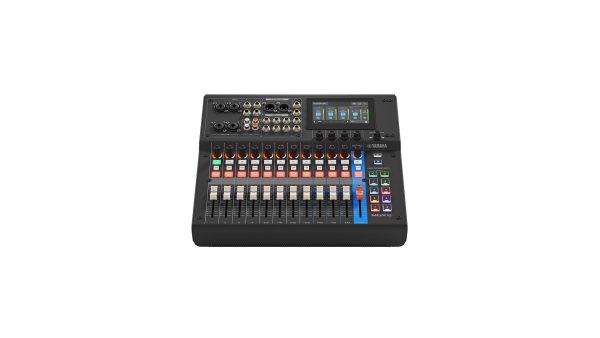

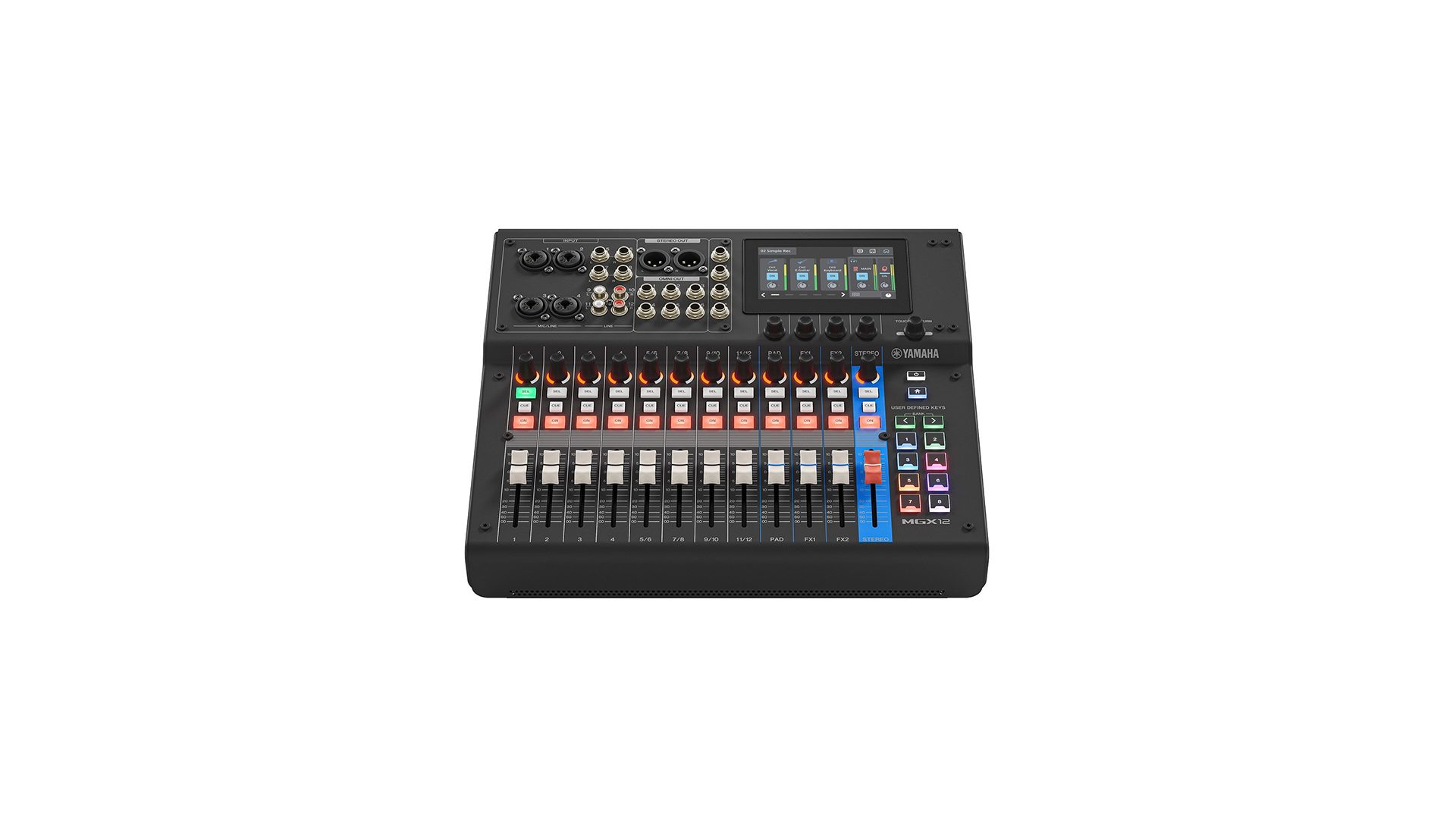

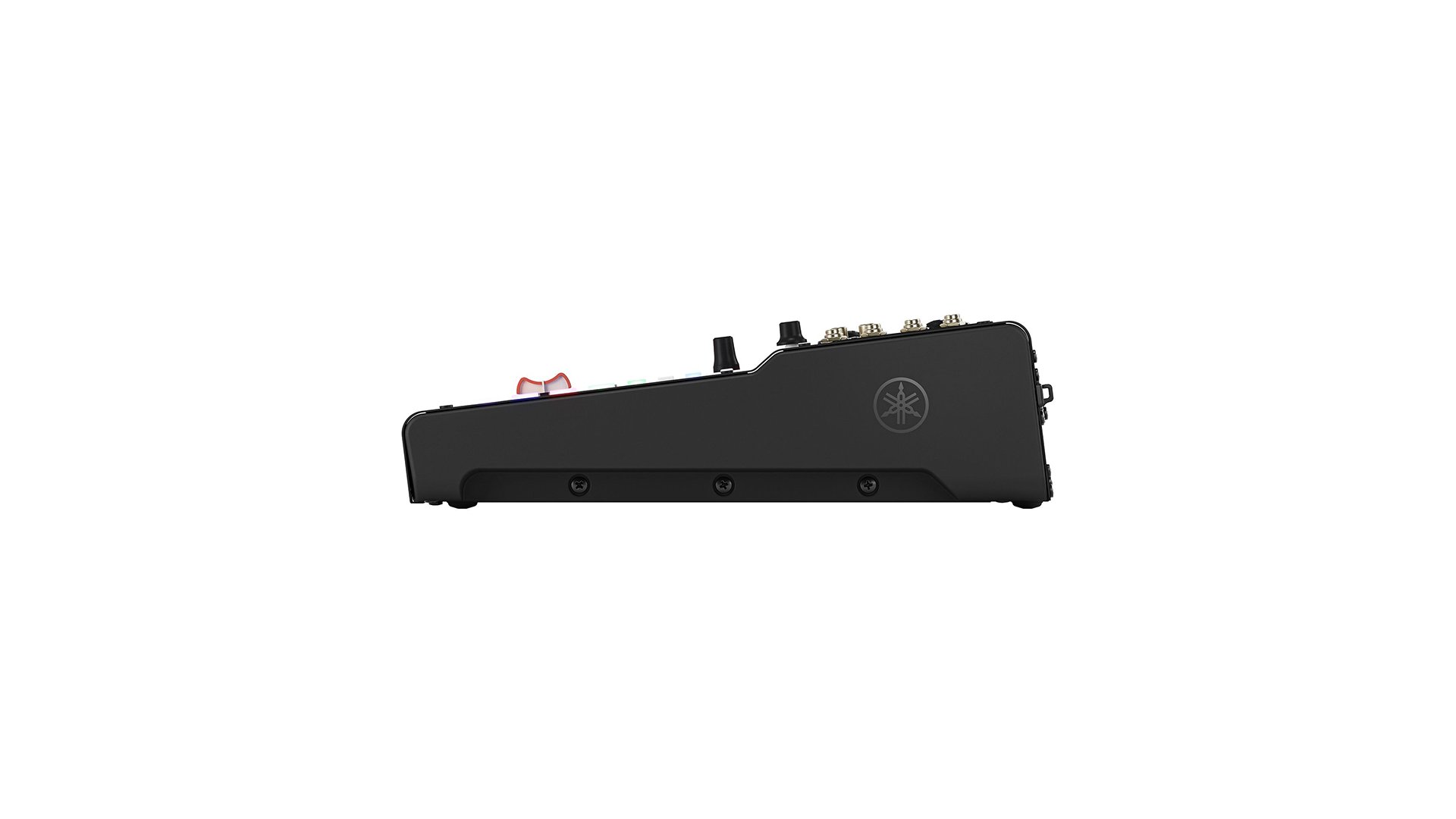

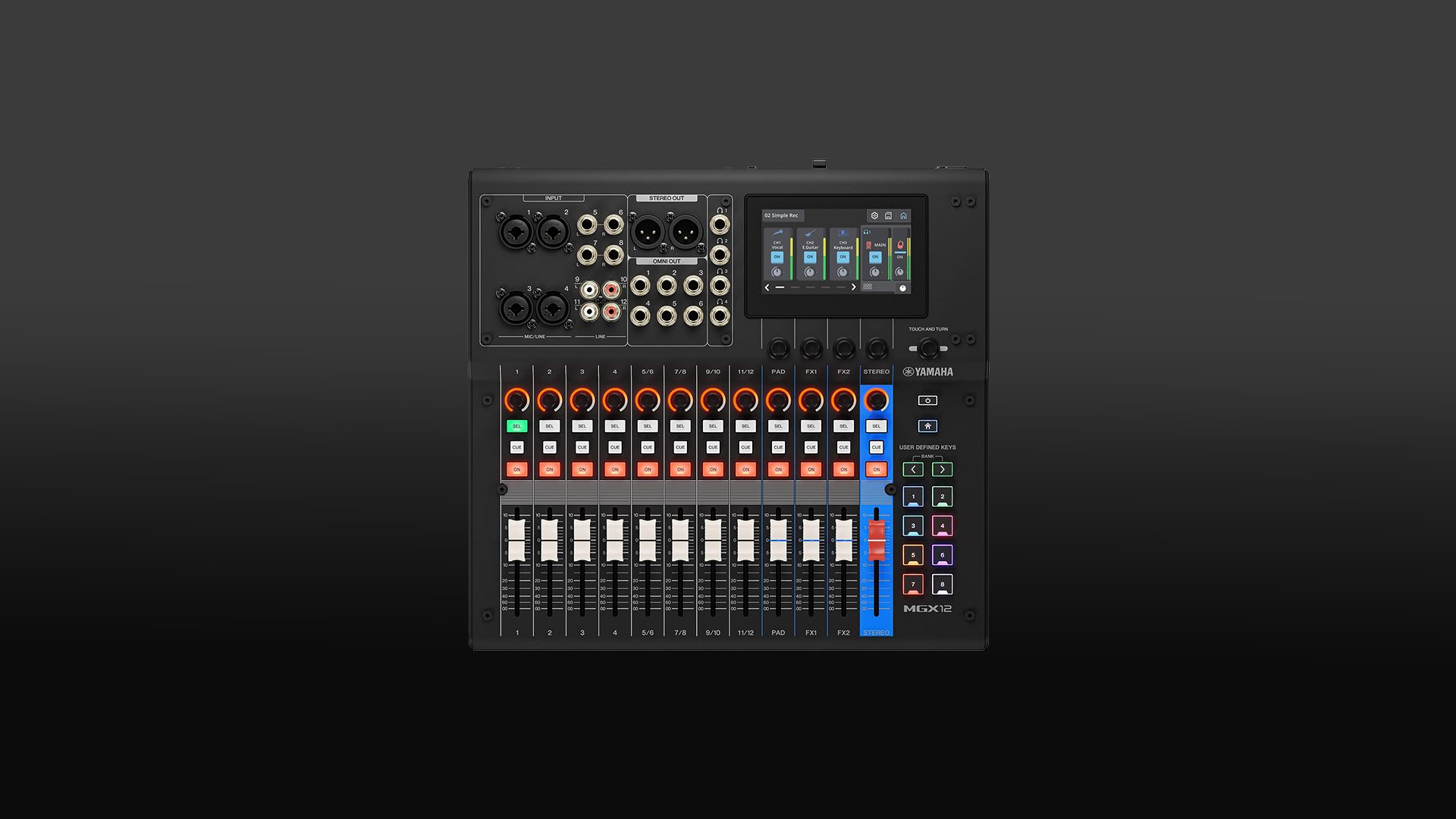

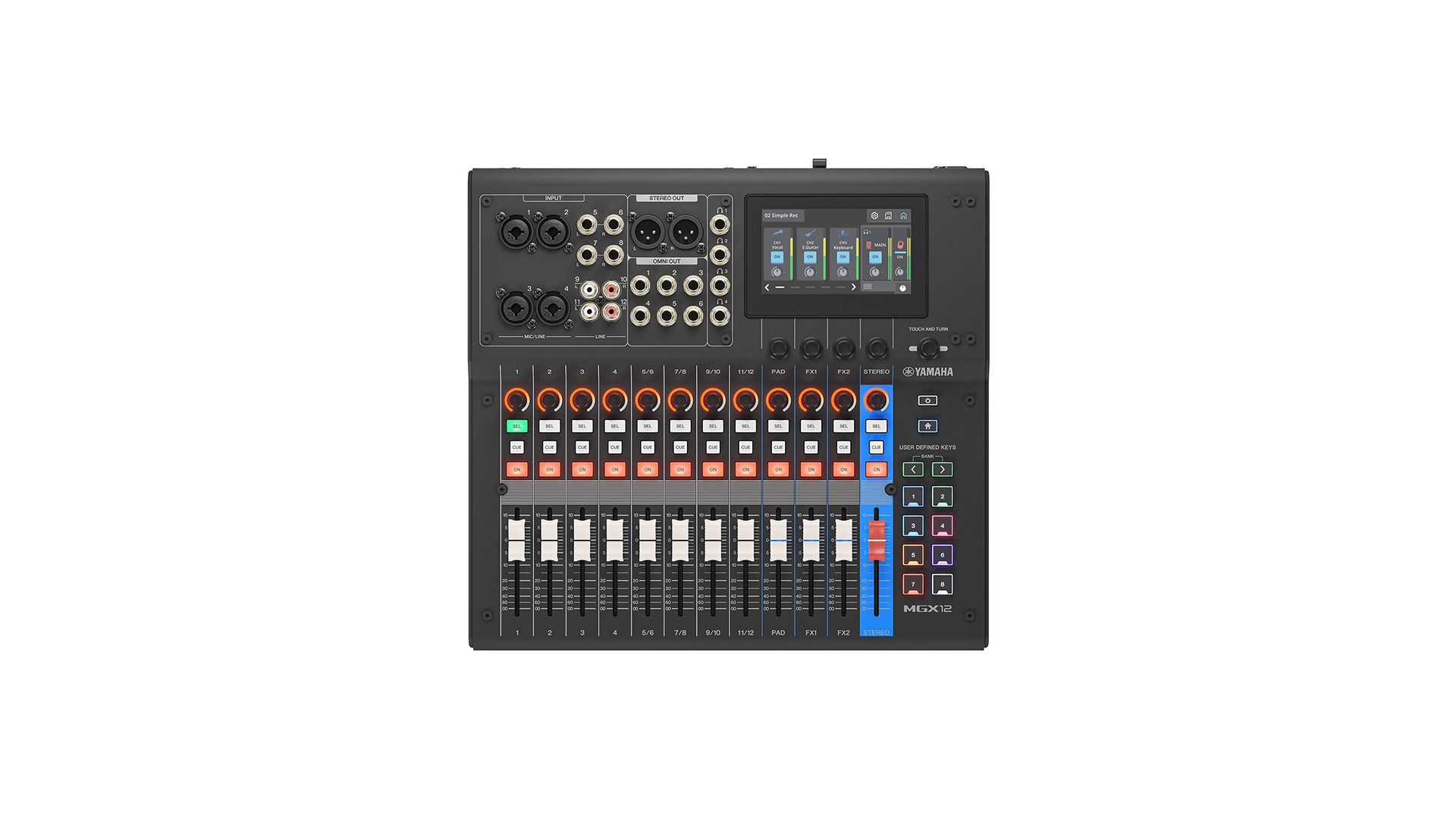

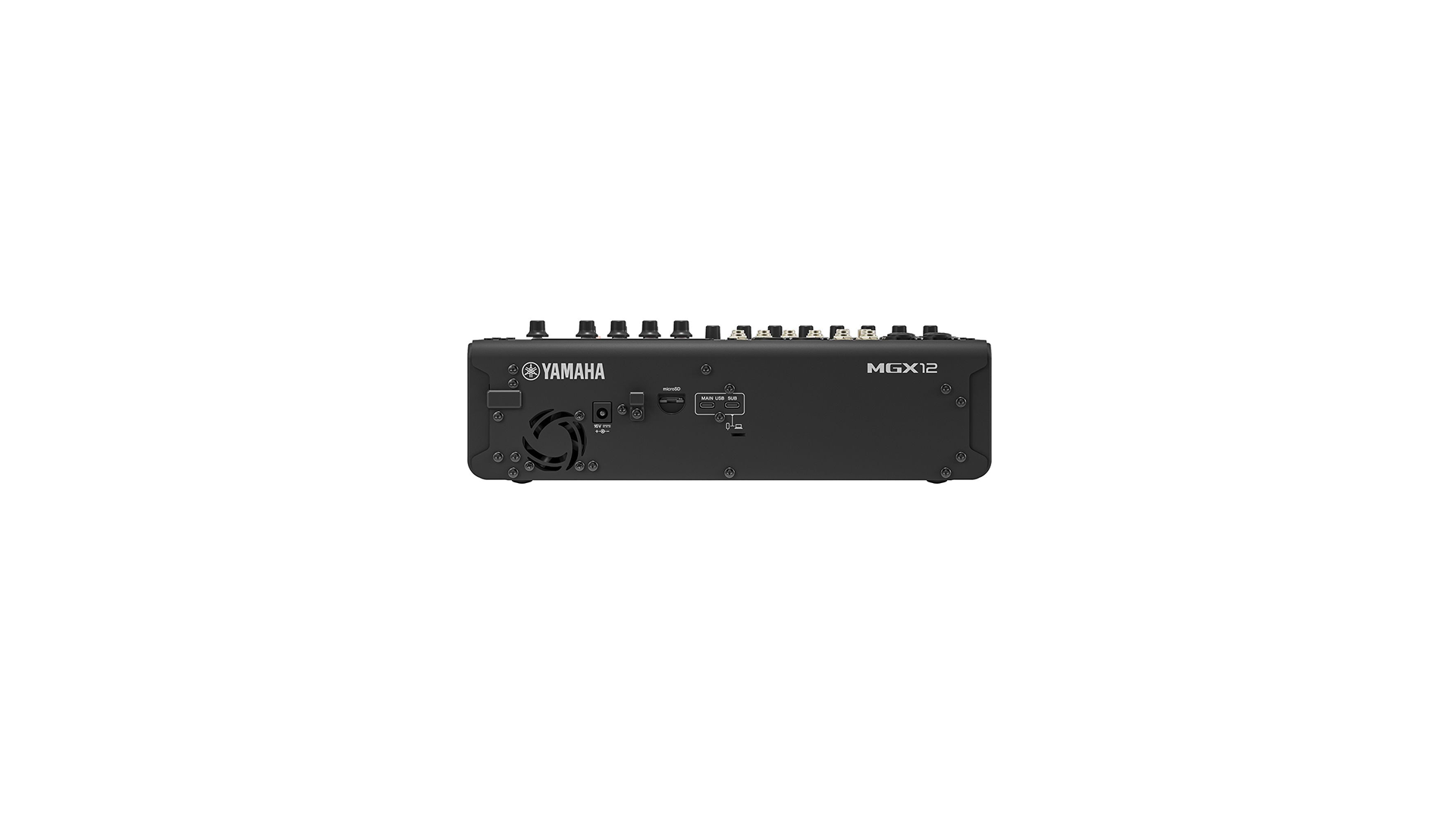

The MGX12 is a portable 18-channel digital mixing console that combines Yamaha's legacy analog sound quality with an intuitive touch-panel GUI and versatile I/O options, providing an efficient and professional solution for live sound, music production, and high-quality recording applications.

SPECIFICATIONS

Specifications

General

Analog Input: 4 Combo (Mic/Line); 4 TRS (Line); 4 RCA (Line)
Analog Output: 2 XLR; 6 TRS
USB to host: 2 (USB Type-C; MAIN - 32-bit/SUB - 16-bit)
Phones: 4 TRS (100 mW+100 mW @40 Ohm)
DC: 1 (Barrel type; DC power IN)
microSD Card Slot: 1
Bluetooth: 1 Bluetooth audio input (Bluetooth 5.0; A2DP)
User Interface: 4.3-inch touch screen; 12 x 60 mm fader; 12 x SEND knob; 5 x rotary encoder (4 x screen knob; 1 x "TOUCH AND TURN")
USB: 18-track recording; 18-track playback
USB (SUB): 2-track recording; 2-track playback
microSD Card: Up to 16-track recording; 2-track playback
Sampling frequency rate: 96 kHz - 44.1 kHz
Signal delay: Less than 0.4 ms (INPUT to STEREO OUT @ Fs=96 kHz)
Frequency response: +0.0 / -0.5dB 20 Hz to 20 kHz; reference to the nominal output level @1 kHz; Input Gain= Min
Dynamic Range: 125 dB typ.; DAC to STEREO OUT; 115 dB typ.; INPUT to MAIN OUT; Input Gain=Min:
Total harmonic distortion: Less than 0.002% 20 Hz to 20 kHz@+4 dBu
MIC INPUT to STEREO OUT; Input Gain=Min:
Equivalent input noise: -128 dBu type; Input Gain= Max
Residual output noise:-108 dBu; ST main off:
Crosstalk: -120 dB; adjacent INPUT/STEREO OUT channels; Input Gain= Min. @1 kHz
Gain range: 86 dB
Power requirements: DC16 V/2.4 A; PA-300C AC power adapter (100 V-240 V; 50 Hz/60 Hz)
Power consumption: 38.4W
Product Width: 335 mm; Product Height
Included accessories: Start Guide; Safety Guide; Steinberg Software License Card x2 (Cubase AI + WaveLab Cast; Steinberg Plus); Basic FX Suite license card; AC Power Adapter (PA-300 including power cord):
Accessories: RK-MGX12 (Mixer Accessory)
Operating temp: 0 - 40 °C
Storage temp: -20 - 60 °C

Outline

Features

Building on the legacy of Yamaha's MG Series—already established as a global standard in mixing consoles—MGX digital mixing consoles deliver a perfect blend of flexibility, performance, and premium sound quality, excelling in a versatile range of live and installed sound, podcast/live streaming, music production, and recording applications. The powerful and extremely versatile features of the MGX12 are designed to be operated quickly and intuitively through its touch-panel GUI and various physical controllers. In addition, a comprehensive selection of I/O options allows you to freely configure the system to suit any application. From live sound and installed sound systems—whether in halls, cafés, clubs, or houses of worship—to podcast streaming and professional recording, the MGX12 adapts seamlessly to a wide range of environments. And in every case, operators, artists, and audiences alike will be captivated by the quality of its sound and performance.

The portable MGX12 compact digital mixing console features versatile capabilities that make it perfect for a wide range of applications. The MGX12 offers superb sound quality, intuitive and fast setup and operation, and professional-level features. Featuring - 11 + 1 fader configuration (non-motorized fader); A 4.3-inch touchscreen with five control knobs; Input mixing channels

Deeply rooted in Yamaha's heritage of designing industry standard analog mixers, the MGX series carries a unique sonic signature cultivated from our unrivalled experience as a manufacturer of a diverse range of both audio products and musical instruments. This sets the MGX series apart from other digital mixers, capturing the nuanced richness, with the precision and responsiveness required to faithfully convey every dynamic element of a musician’s or performer’s expression—qualities that define the very essence of our pursuit of “True Sound”. The implementation of our most cutting-edge technologies, making the MGX series an obvious choice for all users seeking state-of-the-art performance and authentic, premium sound quality.

The MGX series comes equipped with all the requisite capabilities of a professional mixer and so much more. Versatile connectivity, flexible routing, and powerful mixing functions, all of which are crucial to successfully meet the diverse and demanding requirements of these applications. Backed by advanced features like dual USB ports, Bluetooth, microSD multi-track recording/playback, as well as two models equipped with a HDMI-USB video interface, the MGX series is capable of outstanding adaptability, empowering creators to handle any production with confidence.

Getting professional-level quality from a versatile state-of-the-art mixing console is now more accessible than ever. The MGX series is designed for intuitive and fast operation that allows for quick access to essential controls and seamless adjustment of settings without interrupting your workflow. The versatility of the MGX series ensures that it can adapt to any setting with ease, giving musicians, engineers, producers, streamers, and system integrators, all the tools they need to easily and reliably produce professional results with ease.

Audio environment evolution requires modern solutions—that’s why we’ve equipped two MGX-V models of the MGX series with HDMI-USB video capture/pass-through capability, designed to support and enhance hybrid live performances, live streaming, virtual events, and video content creation. This advanced integration allows you to seamlessly combine high-quality audio and video signals in a compact system capable of bringing your vision to life.

With an ever-expanding product ecosystem and a wide range of compatible controllers, your MGX console becomes a powerful partner in both your creative journey, and your impact as a professional—unlocking possibilities that extend far beyond those of a traditional mixer. Powered by Yamaha, Steinberg, and trusted partners like Elgato and OBS, this evolving collaboration aims to deliver the tools and services that drive your creativity and your career forward.
