General Specifications

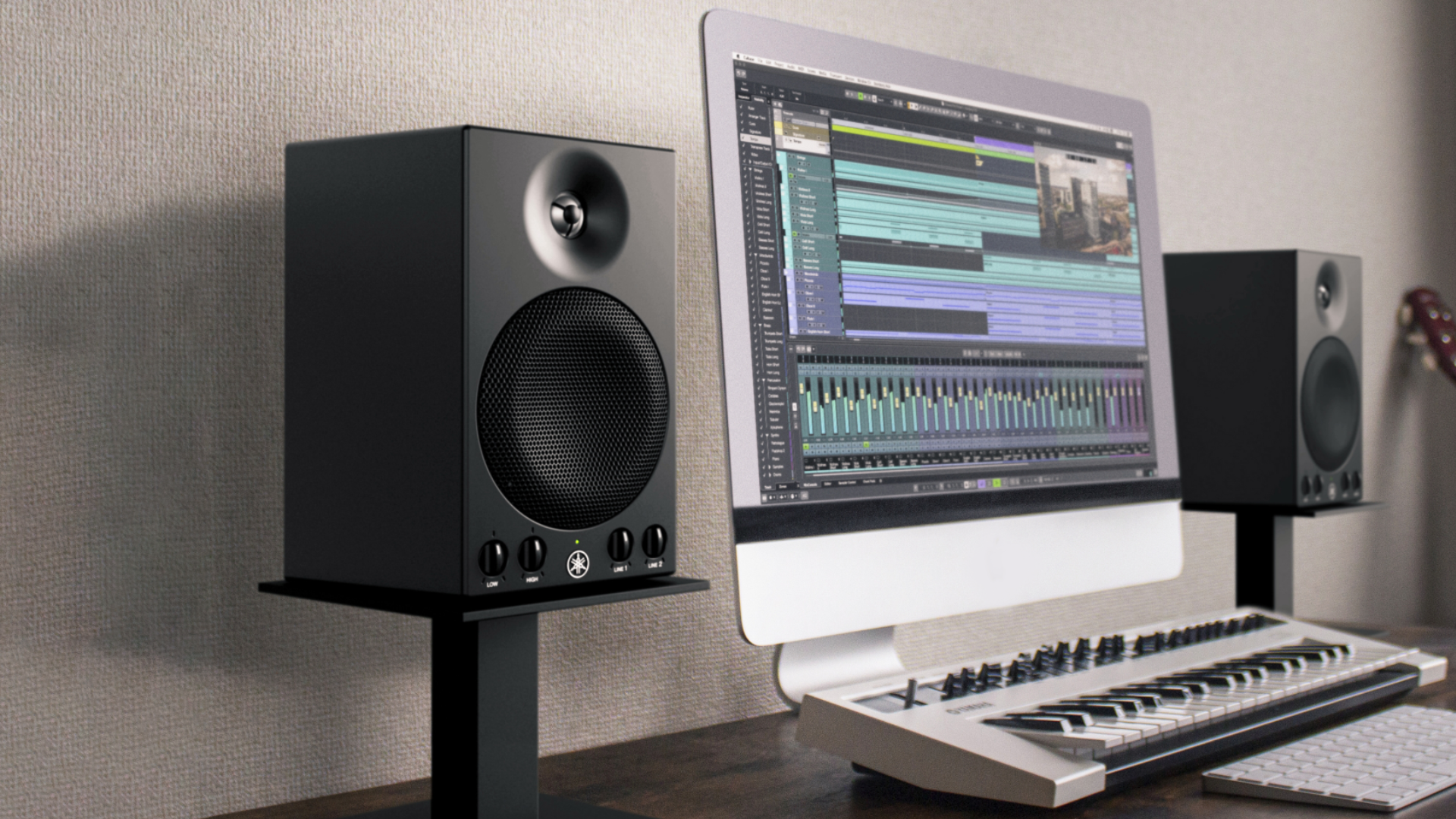

• Speaker type: 2-way powered speaker
• Bass-reflex type (Twisted Flare Port):
• Frequency response (-10dB): 67Hz - 22kHz
• Component LF: 4" (10 cm) Cone
• Component HF: 0.8" (2.2 cm) Dome
• Crossover: 4kHz
• Output power: 22W
• Maximum Output Level (Measured peak, IEC noise@1m): 99dB SPL
• Input sensitivity: LINE 1
• 10k? (RCA):
• LINE 2 : +4.0 dBu
• 10k? (Combo):
• I/O connectors: LINE 1
• LINE 2 : Combo (XLR/TRS phone)
• Indicators: Power ON (Green LED)
• Power requirements: May vary depending on region
• 110 – 120V 50/60Hz:
• 230V 50/60Hz:
• 220 – 230V 50/60Hz:
• 220V 50Hz:
• 240V 50Hz:
• Power consumption: 30W
• Others: Level control (LINE1, LINE2); Tone control (LOW
• Net weight: 3.6kg (7.9 lbs.)
• Accessories: Power cord
• Owner's manual:
• Packaging: Single
• Flying and mounting hardware: 2 x M5
• Depth 15 mm (9/16"):
• Options: Mic stand adaptor BMS-10A
• Free-angle clamp BAS-10:
• Wall mounting bracket BWS20-120 / BWS20-190:
• Ceiling bracket BCS20-150 / BCS20-210:

Dimensions

• Width: 144mm (5-5/8")
• Height: 236mm (9-1/4")
• Depth: 166mm (6-5/8")
