URX22

Name: URX22 | Yamaha | Interfaces
Brand: PRO AUDIO
SKU: URX22

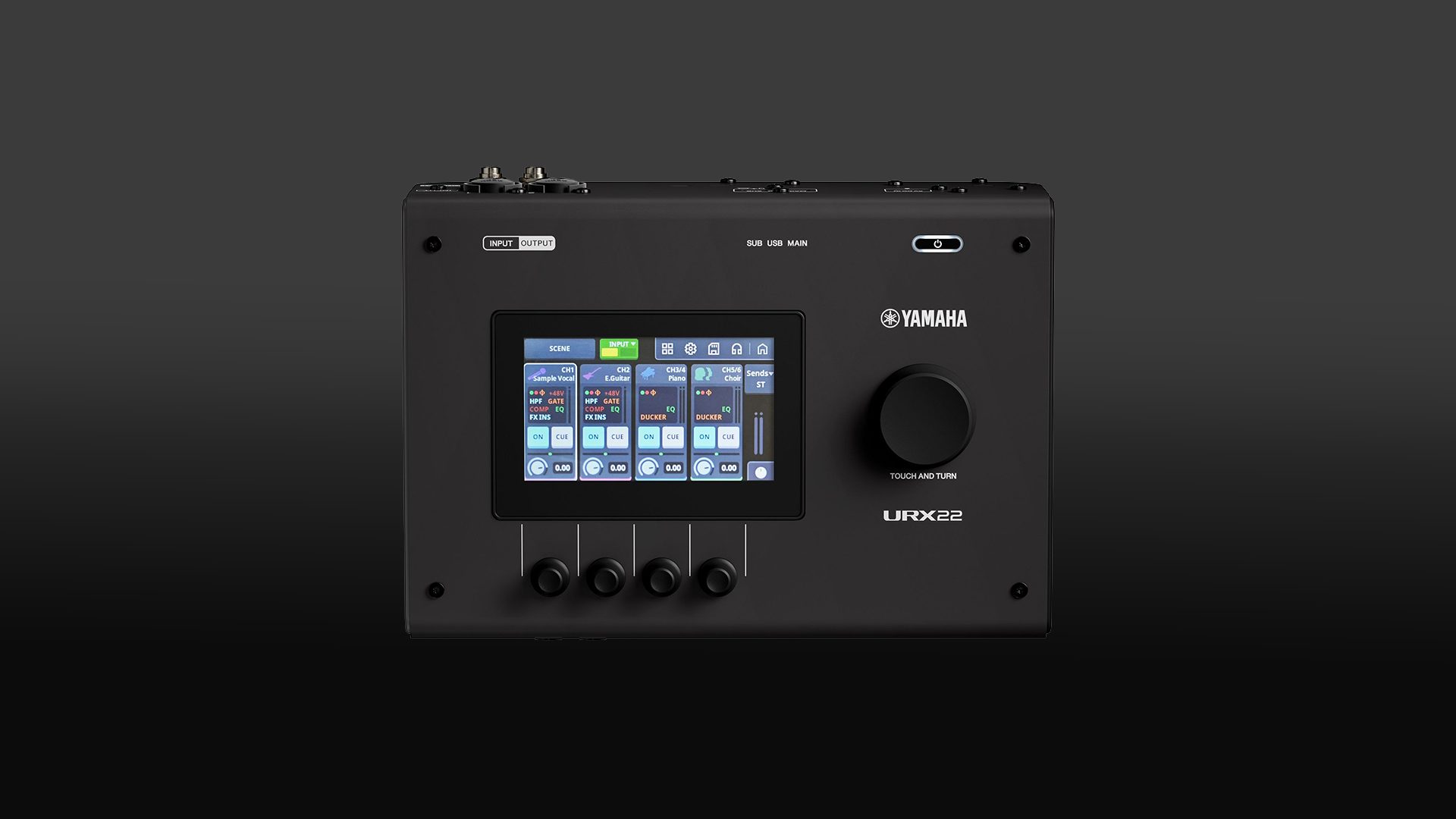

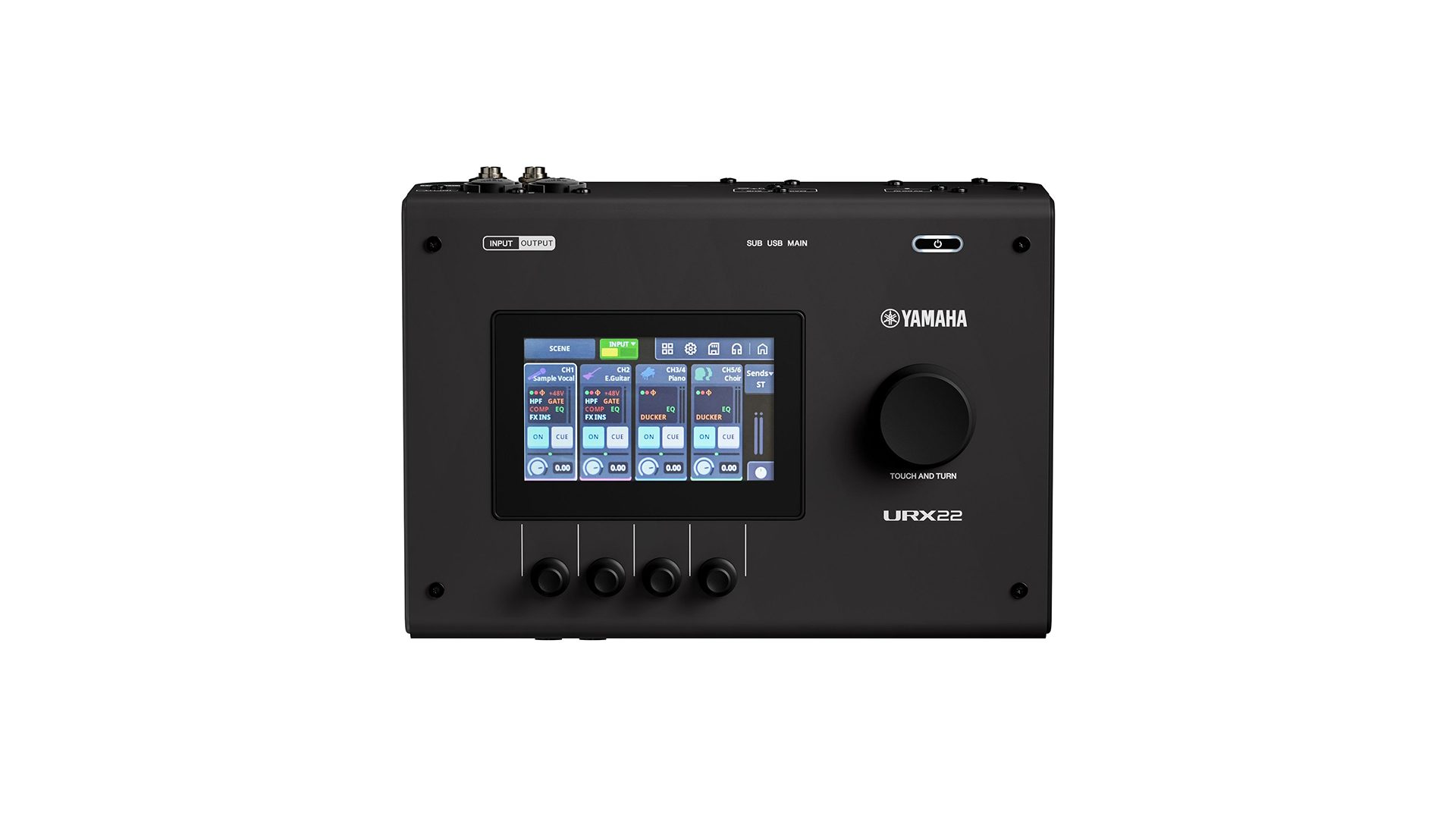

The URX22 is a compact and portable USB-C audio interface that combines 32-bit/192kHz sound quality with an intuitive touch-panel GUI and onboard DSP effects, providing streamers, podcasters, and musicians with a professional, high-performance recording and production solution.

SPECIFICATIONS

Specifications

General

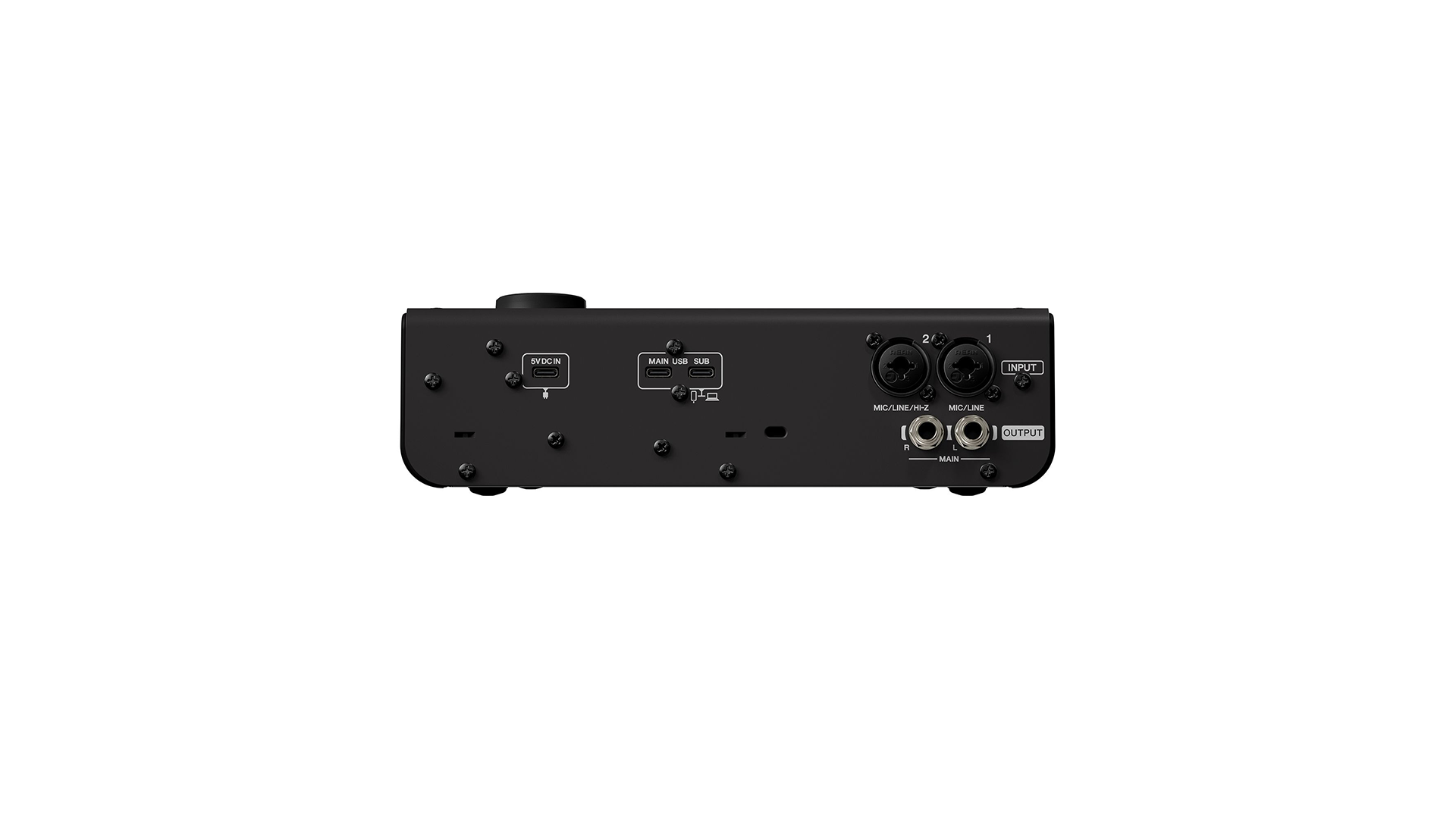

Analog Inputs: 2 Combo (1 Mic/Line/3.5 mm headset mic; 1 Mic/Line/Hi-Z) + 1 AUX (3.5 mm phone)
Analog Outputs: 2 TRS
USB to Host: 2 (USB Type-C; MAIN - 32-bit/SUB - 16-bit)

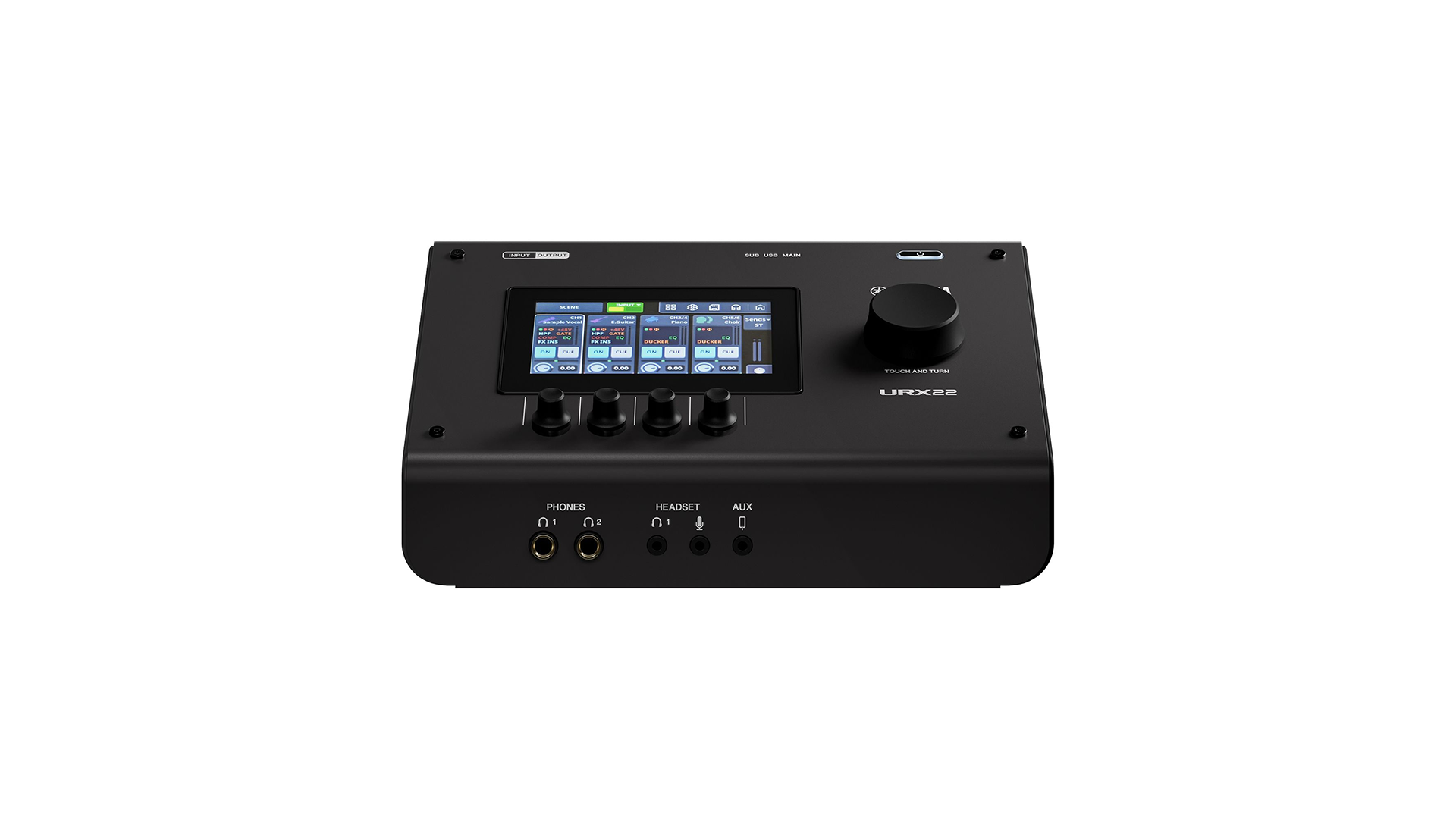

Connectors Phones: 2 TRS; 1 mini headset phones (100 mW+100 mW @40 Ohm) *The first TRS Phones port and the 3.5 mm mini port cannot be used simultaneously
Connector DC: 2 (Type-C USB MAIN bus power or Type-C USB DC IN)
User Interface: 4.3-inch touch screen; 5 x rotary encoder (4 x screen knob; 1 x "TOUCH AND TURN"); Recording & Playback USB
Recording & Playback USB (SUB): 2-track recording; 2-track playback
Sampling frequency rate: 192 kHz - 44.1 kHz
Frequency response: +0.0/−0.2 dB (20 Hz – 20 kHz)
Dynamic range: [MIC/LINE/Hi-Z] 115 dB; [MAIN OUTPUT] 125 dB
Total Harmonic Distortion: [MIC/LINE/Hi-Z] 0.0008 %; 1 kHz
20 kHz LPF; [MAIN OUTPUT] 0.00036%; 1 kHz; 20 kHz LPF:
Hum & Noise Level: -128 dBu; A-Weighted
Gain range: 78dB
Power Requirements: DC5 V/ 3.0 A
Power Consumption: 15 W (Off mode power
Auto Power Off: 2 minutes; 5 minutes; 10 minutes; 15 minutes; 20 minutes or Never (factory default)
Product Dimensions: Width - 245 mm (9.6"); Height - 78 mm (3.1"); Depth - 182 mm (7.2"); Net weight - 1.9 kg (4.2 lb)
Included Accessories: Start Guide; Safety Guide; Steinberg Software License Card x2 (Cubase AI + WaveLab Cast; Steinberg Plus); Basic FX Suite license card; USB-C to USB-C Cable (USB 2.0, 1.5 m)
Operating Temp: 0 to + 40 ℃
Storage Temp: -20 to + 60 ℃

Outline

Features

You know the fundamentals, you've put in the hours, and your audio production game is getting to the level where you need that extra functionality, connectivity, and sound quality to make your recordings, streams, and productions truly match your creative vision? The URX series digital interfaces mark a significant step up in quality and flexibility from entry level interfaces while retaining their greatest attributes; a compact, unobtrusive design, simple connectivity, and ease of operation. As all-in-one solutions, all three URX models come equipped with onboard DSP mixing tools and effects integrated into the LCD panel’s GUI, as well as a touch panel interface, carefully selected physical knobs, and support for compatible controllers, enabling a highly intuitive and speedy workflow. Each URX model comes bundled with a comprehensive suite of music production software to support every stage of your workflow—from creation and audio management to system expansion. Backed by the rock-solid stability and reliability trusted by audio professionals worldwide, Yamaha and Steinberg provide the confidence you need to take on your next creative challenge.

Perfect for streamers, podcasters, gamers, and vocalist/ musicians in particular, the URX22 is a compact, portable powerhouse punching well above its weight class in sound quality and system capability. When you demand professional-level audio but without the often frustrating and complicated setup and operation that usually comes with it, the URX22 is a minimalist’s dream, delivering professional-level results, yet with an effortless setup and workflow that won’t hinder your creativity. The URX22 is a 4-in/2-out USB-C Audio Interface with 32-bit/192kHz support, Touch LCD panel GUI with physical controller, DSP-powered mixing/effects for a seamless workflow. Featuring - USB Type-C audio interface with 32-bit / 192 kHz support, Multi-Stream Audio Driver, dual USB (MAIN/SUB); 125 dB dynamic range (MAIN output - Balanced); 2 URX mic preamps with 78 dB gain range and +48 V phantom power; 2 Mic/Line (1 Combo/3.5 mm headset mic, 1 Combo with Hi-Z), 1 AUX input (3.5 mm phone); 2 TRS line outputs, 2 headphones (1 stereo phone/3.5 mm headset, 1 stereo phone); Input mixing channels

It all starts—and ends—with your sound. As the critical bridge from inspiration to finished product, the quality of sound you start with has serious implications on how your songs, performances, or streams will ultimately impact both you and your audience. With clean, accurate signal conversion and Yamaha’s revered professional preamps ensuring that every detail of your vocal and instrumental performances is captured perfectly without distortion or noise, the URX series is for creators that refuse to compromise on sound

Crucial for musicians, podcasters, and content creators looking to enhance your audio production setup, the URX series offers flexible I/O options that empower you to explore diverse audio possibilities and deliver professional-quality recordings and productions with ease. With the ability to connect multiple mics or instruments and flexibly manage a variety of audio sources and devices from your computer, you can take your creations in many creative directions—greatly expanding the possibilities of your work.

URX interfaces were built with power and purpose, and a design ethic centred around convenient, hands-on operation that won't distract from your creative process. Everything is where you want it to be in order to seamlessly connect devices, run through tasks, call up crucial functions, and establish a fast and efficient creative flow that allows you to get everything right on the first attempt.

With an ever-expanding ecosystem and a wide range of compatible controllers, URX becomes an even more powerful partner in your creative journey—opening up new possibilities far beyond any typical interface. Powered by Yamaha, Steinberg, and trusted partners like Elgato and OBS, this evolving collaboration aims to deliver the tools and services that keep your creativity moving forward.
