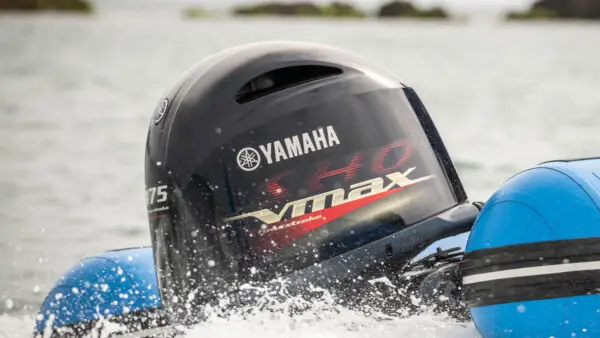

VF175

Name: Product | Products
Brand: 4 STROKE OUTBOARDS
SKU: VF175

The In-Line Four V MAX SHO four strokes have achieved the unthinkable—packing signature V MAX SHO hole shot and acceleration into streamlined designs.

SPECIFICATIONS

Specifications

Engine Type: Inline 4
Displacement: 2.8L
Bore x Stroke: 96 x 96.2mm (3.78 x 3.79in)
Prop Shaft Horsepower: 175 hp at 5500 rpm
Full Throttle RPM Range: 5000 ~ 6000 rpm
Alternator Output at W.O.T.: 50 Amp
Compression Ratio: 10.3:1
Fuel Induction System: EFI
† Weight: 218 kg
Shaft Length: 20"
Degree of Tilt: 70°
Degree of Trim: -4° through +16°
Exhaust: Through Propeller
Starting System: Electric Starter
Lubrication: Wet Sump
Engine Oil Capacity: 4.5L/4.3L w/without filter
Gear Ratio: 1.86
Gear Shift: Forward
Neutral:
Reverse :

Features

Lean and mean, the I-4 V MAX SHO® 175 delivers exhilarating hole shot and class-leading top speed. It clocked in at 62 mph with a tournament load—five mph faster than its VF150 sibling.* • 2.8L high-output four cylinder. • 480 lbs. dry weight • 20-inch and 25-inch shaft options • 50 amps of charging power • Command Link® compatibility with Variable Trolling *Tests conducted by Yamaha Marine using a Skeeter® ZX190 with a tournament load and two occupants.

QUIET POWER AND PERFORMANCE The I-4 V MAX SHO® design maximizes combustion efficiency in a way that no two stroke can, delivering clean, quiet power and performance. MIDRANGE POWER AND RESPONSE The V MAX SHO® 175 and 150 feature Variable Camshaft Timing, which optimizes the angle of the intake camshaft to increase power and throttle response in the low- and mid-RPM ranges. FUEL EFFICIENT In-line Four V MAX SHO® designs are up to 40% more fuel efficient than traditional carbureted two strokes. OPTIMUM POWER Precision Multi-Point Electronic Fuel Injection and long-track intake system combine to maximize power and fuel efficiency across the line of In-Line Four V MAX SHO® outboards. POWER MANAGEMENT An array of advanced sensors constantly provide vital atmospheric and engine conditions to the Engine Control Module (ECM), which instantly makes the precise adjustments for optimum performance.

The I-4 V MAX SHO® 175 and 150 feature a Cowling Drain System and Air Intake Labyrinth System to trap and drain water that enters their cowlings during normal operation.

EXTRA SPACE A four stroke in-line design means there's no need for an external oil tank. That means less weight and more storage room in the boat for tackle and gear. AMPLE CHARGING POWER At 50 amps, the V MAX SHO® 175 and 150 alternators boast an 11 percent increase in charging power over the two stroke 150 HPDI®. EASY RIGGING I-4 V MAX SHO® outboards feature mechanical controls for easy, convenient rigging with most bass, bay and flats boats, and are compatible with analogue, 6Y5 digital or Command Link® gauges.
